Stand alone filter mount kit SSFM
Stainless steel rail
Vertical and angular adjustment
Minimal distance between centers: 100mm
Maximal distance between centers: 210mm
Weight (without filters): 1kg

Block mount kit BM
M6 mounting threaded holes
Weight (without filter) : 200g
Rotational adjustment

Lens mount kit
MK1: lens barrel diameter up to 83mm
MK2: lens barrel diameter up to 100mm
MK3: lens barrel diameter up to 110mm

Note: The following filters fit the filter mounts: SPAR-50
POLAR-50, LSAR-50, LSH-50
POL-25, POLH-25, POLHAR-25

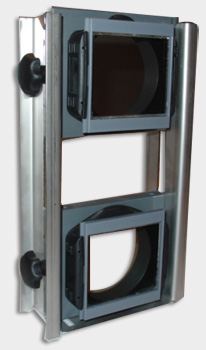

Stand alone filter mount
kit SSFM with filters



Block mount kit BM with filter                             Lens mount kit MK2 with filter
